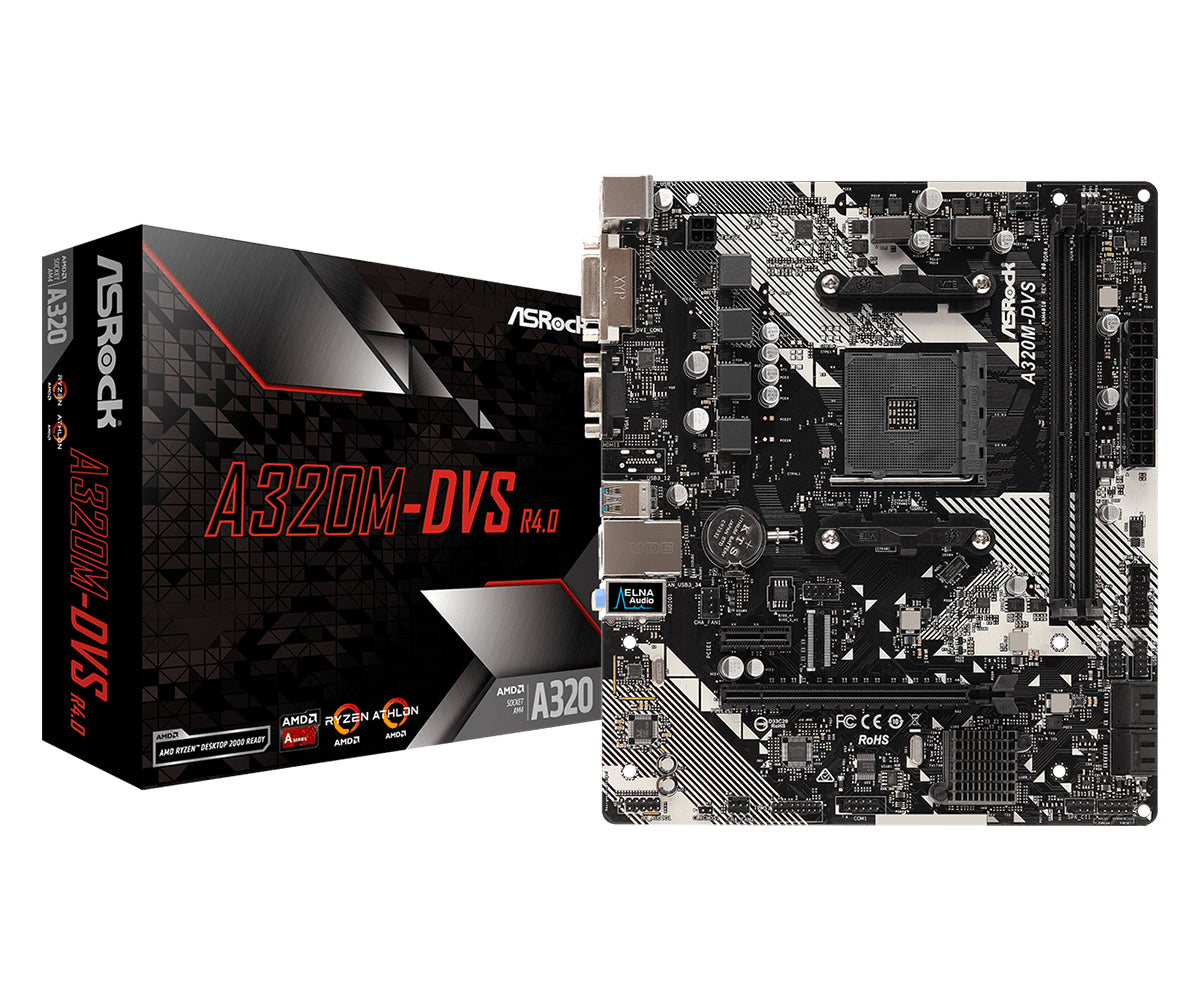

ASROCK A320M-DVS R4.0 MOTHERBOARD MICRO ATX SOCKET AM4- AMD A320
Processor
Installed Qty: No
Max Supported Qty: 1
Mainboard
Form Factor: Micro ATX
Compatible Processors: Athlon, A series, Ryzen
Chipset Type:AMD A320
Supported RAM Technology: DDR4 SDRAM
Supported RAM Integrity Check: Non-ECC, ECC
Supported RAM Speed: 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz (O.C.)
Processor Socket:Socket AM4
Power Connectors:4-pin ATX12V connector, 24-pin main power connector
Supported RAM (Registered or Buffered):Unbuffered
Interfaces
Internal Interfaces:1 x audio – header, 1 x serial – header, 4 x USB 2.0 – header, 2 x USB 3.1 Gen 1 – header
RAM
Max Supported Size:32 GB
Features:Dual channel memory architecture
Video Output
Type:Graphics adapter (CPU required)
Audio Output
Type:Sound card
Compliant Standards:High Definition Audio
Audio Codec:Realtek ALC887
Audio:High Definition Audio (8-channel)
Networking
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Network Controller:Realtek RTL8111H
Network:Gigabit Ethernet
Expansion Slots
Expansion Slots:1 x CPU, 1 x PCIe 2.0 x1, 2 x DIMM 288-pin, 1 x PCIe 3.0 x16 (x16 mode (Ryzen series Summit Ridge and Pinnacle Ridge CPU)
x8 mode (with Ryzen / AMD 7th Generation A-series CPU); x4 mode (with Athlon CPU)
Interfaces
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10
Storage:Serial ATA-600 (RAID)
FireWire:USB 3.1 Gen 1
Storage Ports:4 x SATA-600 (RAID)
FireWire Ports Configuration (Active):4 x USB 3.1 Gen 1 + 2 x USB 2.0
FireWire Ports Configuration (Headers):2 x USB 3.1 Gen 1 + 4 x USB 2.0
Software
Software Included:Antivirus (Trial version), Drivers & utilities, Google Chrome Browser, Google ChromeToolbar, ASRock APP Charger, ASRock XFast LAN
Dimensions & Weight
Width:23 cm
Depth:20.1 cm
