Rack-mountable 1U mixer with built-in media player and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo record output. Media player operating modes include 3.5mm Aux input, USB audio player, FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right outputs are fed to XLR with an additional mono summed output on 6.3 jack. Versatile yet easy to use as a main mixer for background music, public address and house PA systems.
- Built-in Bluetooth receiver
- Media player with USB playback and FM tuner
- Switchable +20V phantom power
- Variable priority muting for channel 1
- 24V emergency mute contacts
The box for this item contains:
- MM321 1U mixer with Bluetooth + USB/FM player
- IEC power lead(s)
Power supply: 100-240Vac, 50/60Hz (IEC)
Fuse: T1AL
Inputs: mic/line3 x XLR (bal/unbal)
Inputs: aux2 x L+R RCA
Input: line3.5mm jack to media player
Audio source: Internal Bluetooth, USB & FM player

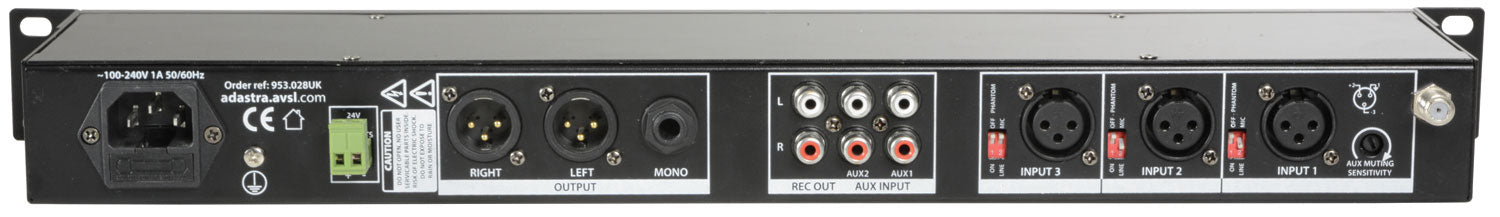

Outputs: L+R XLR, Mono 6.3mm jack, Record out (RCA)
Emergency control: 24V contacts mute all except channel 1
Phantom power: +20V (switchable channels 1-3)

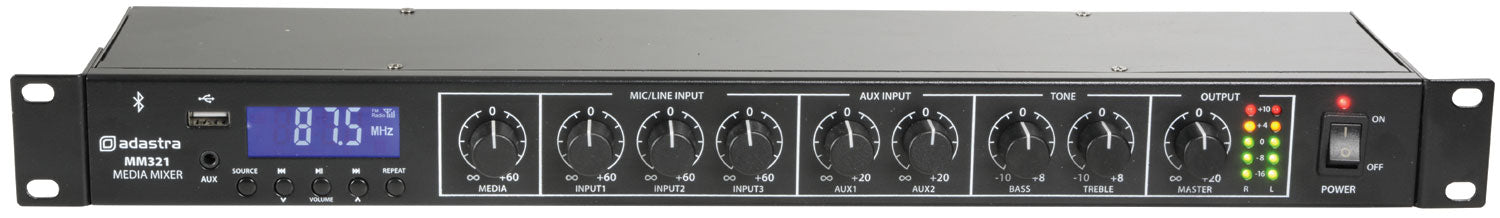

Controls: Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
Rear panel controls: Priority muting level, mic/line and phantom DIP switches
Input impedance: 2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response: mic20Hz - 18kHz
Frequency response: line14Hz - 20kHz
Frequency response: aux10Hz - 23kHz
Input sensitivity: mic/line-45dBV
Input sensitivity: aux/line-10dBV
Signal to noise ratio: mic55dB
Signal to noise ratio: aux/line60dB
THD: 0.05%
Dimensions: 482 x 130 x 44mm
Weight: 1.43kg
