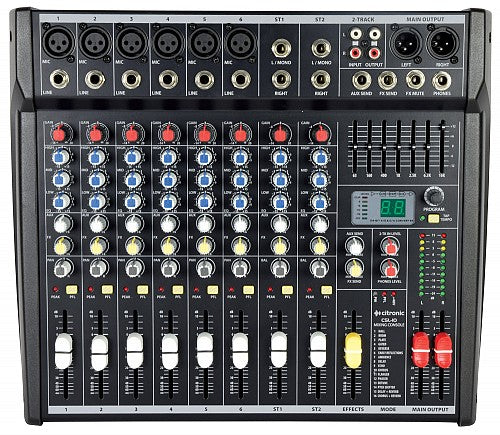

Citronic CSL-10 v2 Mixing Console 10 inputs 170.853UK

Compact mixing console with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.

• 24-bit 16 program DSP effects
• 48V phantom power for XLR inputs
• 3-band EQ per channel
• 7-band global graphic EQ
• IEC mains powered
• Balanced main outputs
• 19" rack-mounting ears (optional)

• Inputs : mic/line: 6 x balanced XLRF/TRS jack
• Power supply 230Vac, 50Hz (IEC)
• Phantom power +48V (XLR inputs)
• Power consumption 25W
• Fuse T1AL
• Input level +24dBu
• Output level : line +26dBu
• Frequency response 20Hz-30kHz (0.5dB)
• CMRR >74dB (mic 1kHz)
• THD +N <0.01% (channel to main out)
• Crosstalk >85dB (fader mute), >82dB (channel)
• Noise rms : 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
• EQ: high 12kHz ±15dB shelving
• EQ: mid 2.5kHz ±15dB band pass
• EQ: low 80Hz ±15dB shelving
• Input impedance : mic (balanced) 2k Ohms
• Input impedance : line (balanced) 10k Ohms
• Sensitivity : mic -60 to +14dBu
• Sensitivity : line -40 to +14dBu
• 2-track 2 x RCA in & out (-2dBu)
• Effects 16 program DSP (24-bit sigma-delta, 40kHz)
• Output impedance <75 Ohms
• Headphone output 6.3mm jack, 30-600 Ohms
• Dimensions: 360 x 320 x 107mm
• Weight: 3.5kg
•
