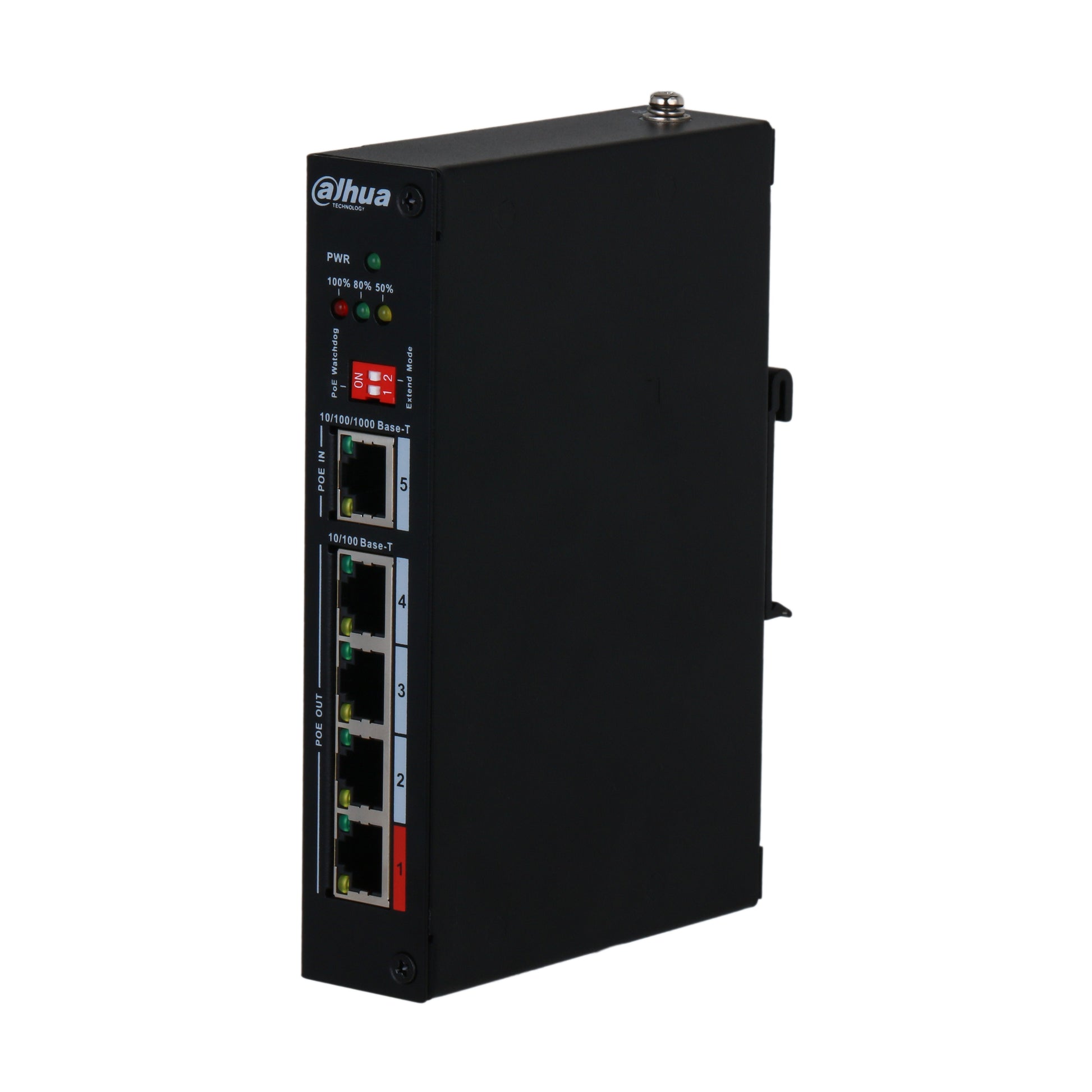

Dahua PoE Extender 5-port with 4-Port PoE Out and 1-Port PoE In PFT1500

• 4× 100 Mbps PoE Ethernet ports, 1 × 1000 Mbps PoE Ethernet port
• All ports meet the requirements of IEEE802.3af and IEEE802.3at standards. The red ports also conform with Hi-PoE and IEEE802.3bt standards
• 250 m long-distance PoE transmission, which can be enabled by the DIP switch.
• PoE Watchdog for real-time detection of terminal device status
• Fanless
• Full-metal
• Lightning Protection: common mode: 4 kV, differential mode: 2 kV
• Desktop mount and DIN-rail mount

Hardware

• PoE : Yes
• Ethernet Port : 4
• Ethernet Port Speed : 10/100 Mbps
• Ethernet Port Uplink Speed : 10/100/1000 Mbps
• Description of Function Slots : Port1-4: 4*RJ45 10/100 Mbps / Port5: 1*RJ45 10/100/1000 Mbps
• Operating Temperature : –30 °C to +65 °C
• Operating Humidity : 5%–95% (RH)
• Storage Temperature : –40 °C to +70 °C
• Storage Humidity : 5%–95% (RH)
• Power Consumption : Idling: 5 W / Full load: 90 W

Performance

• Layer : Layer 2
• Management Type : No
• MTBF : 66.37
• Switching Capacity : 2.8 Gbps
• Packet Forwarding Rate : 2.08 Mpps
• Packet Buffer Size : 1 Mbit
• Jumbo Frame : 9K Byte
• MAC Table Size : 4K
• Communication Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab,IEEE 802.3z, IEEE 802.3az

PoE

• PoE Protocol : IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
• PoE Power : Port 2-4 ≤ 30 W, port 1 ≤ 90 W, Full load ≤ 90 W
• PoE Pin Assignment : 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• Long Distance PoE Transmission : Yes

Port

• IEEE 802.3x Flow Control : Yes

General

• Statics Protection : Air discharge: 8 kV / Contact discharge: 6 kV
• Lighting Protection : Common mode: 4 kV / Differential mode: 2 kV
• Net Weight : 0.47 kg (1.03 lb)
• Gross Weight : 0.65 kg (1.43 lb)
• Product Dimensions : 150 mm × 100 mm × 30 mm
• Packaging Dimensions : 265 mm × 238 mm × 76 mm
• Casing : Metal
• Installation : Desk Mount / Guide Rail Mount
• Certifications : CE; FCC
