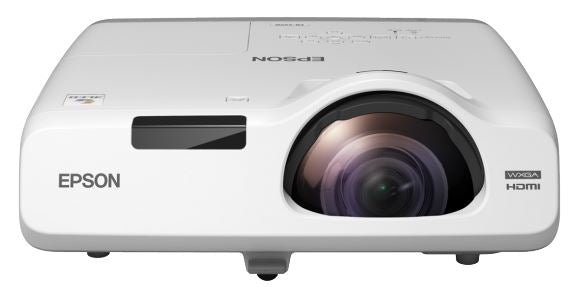

EPSON PROJECTOR EB-535W, 3LCD BUSINESS, WXGA 1280x800

High-quality image

Complete with our 3LCD technology, the EB-535W displays superior-quality, bright images with more accurate colours. The image can be seen even in brightly-lit rooms thanks to an equally high white and colour light output. Image detail is clear thanks to a high contrast ratio and our new short throw lens means sharper images and improved focus.

More value for your money

The lamp in the EB-535W now lasts up to 10,000 hours in eco mode. The projector even conserves power during presentations by automatically adjusting the light output depending on the content. The A/V mute function pauses the presentation and dims the lamp by 70% to conserve energy while the projector is not in use. The projectors' built-in 16w speaker means audio content can be played directly through the projector, without the need for additional external speakers. The microphone input transforms the projector into a PA system, meaning presenters can be easily heard in a classroom environment.

Easy to set up and use

The EB-535W has both horizontal and vertical keystone correction to achieve a perfectly shaped image and help avoid distortion. When setting up several projectors, the OSD settings can be copied from one projector to many others meaning you don’t need to set up projectors individually. Multi-PC projection software allows content from four devices, including PC’s, tablets, smart phones, to be displayed simulatenously.



Key Features

Exceptional image quality
Epson’s 3LCD technology displays brighter images and more accurate colours

Equally high white and colour light output
Projected image can be seen clearly even in brightly-lit rooms

Clearer detail
Increased contrast ratio of 16,000:1

Longer lamp life means low TCO
10,000 hours in eco mode / 5,000 hours in normal mode

Flexible installation options
Horizontal and vertical keystone correction for off-centre and uneven placement





Tech Specs

Technology

Projection System

3LCD Technology

LCD Panel

0,59 inch with MLA (D8)


Color Light Output

3.400 Lumen- 1.900 Lumen (economy)

White Light Output

3.400 Lumen - 1.900 Lumen (economy) In accordance with ISO 21118:2012

Resolution

WXGA, 1280 x 800, 16:10

High Definition

HD ready

Aspect Ratio

16:10

Contrast Ratio

16.000 : 1

Light source

Lamp

Lamp

215 W, 5.000 h durability, 10.000 h durability (economy mode)

Keystone Correction

Manual vertical: ± 15 °, Manual horizontal ± 15 °

Colour Video Processing

10 Bits

2D Vertical Refresh Rate

50 Hz - 85 Hz

Colour Reproduction

Upto 1.07 billion colours

Optical

Throw Ratio

0,48 - 0,65:1

Zoom

Digital, Factor: 1 - 1,35

Lens

Optical

Screen Size

53 inches - 116 inches

Projection Distance Wide

0,5 m ( 53 inch screen

Projection Distance Tele

1,2 m ( 116 inch screen

Projection Lens F Number

1,6

Projection Lens Focal Length

6,4 mm

Projection Lens Focus

Manual

Offset

10 : 1

Connectivity

USB Display Function

3 in 1: Image / Mouse / Sound

Interfaces

USB 2.0 Type A, USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out, HDMI in, Composite in, Component in (2x), S-Video in, Stereo mini jack audio out, Stereo mini jack audio in (2x), Microphone input, Cinch audio in

Epson iProjection App

Ad-Hoc / Infrastructure

Advanced Features

Security

Kensington lock, Security bar, Wireless LAN unit lock, Wireless LAN security, Password protection

Other features

Built-in speaker, Customizable user logo, Digital zoom, Dynamic lamp control, Horizontal and vertical keystone correction, Long lamp life, Microphone input, Wireless LAN capable

Video Color Modes

Blackboard, Dynamic, Presentation, sRGB, Theatre

General

Power consumption

298 Watt, 221 Watt (economy), 0,28 Watt (standby)

Supply Voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions

344‎ x 315 x 94 mm (Width x Depth x Height)

Product weight

3,7 kg

Noise Level

Normal: 37 dB (A) - Economy: 29 dB (A)

Supported Temperature

Operation 5° C - 35° C, Storage -10° C - 60° C

Supported Humidity

Operation 20% - 80%, Storage 10% - 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

Included Software

iProjection, Epson Projector Management

Options

Connection and control box, Document camera, Quick wireless USB key, Short throw wall mount, Soft carry case, Wireless LAN unit

Loudspeaker

16 Watt

What's in the box

Computer cable, Main unit, Power cable, Remote control incl. batteries, Safety Cable, Setup guide, Software (CD), User manual (CD)

Colour

White / Grey

TCO Certified

For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf

Other

Warranty
2 years
