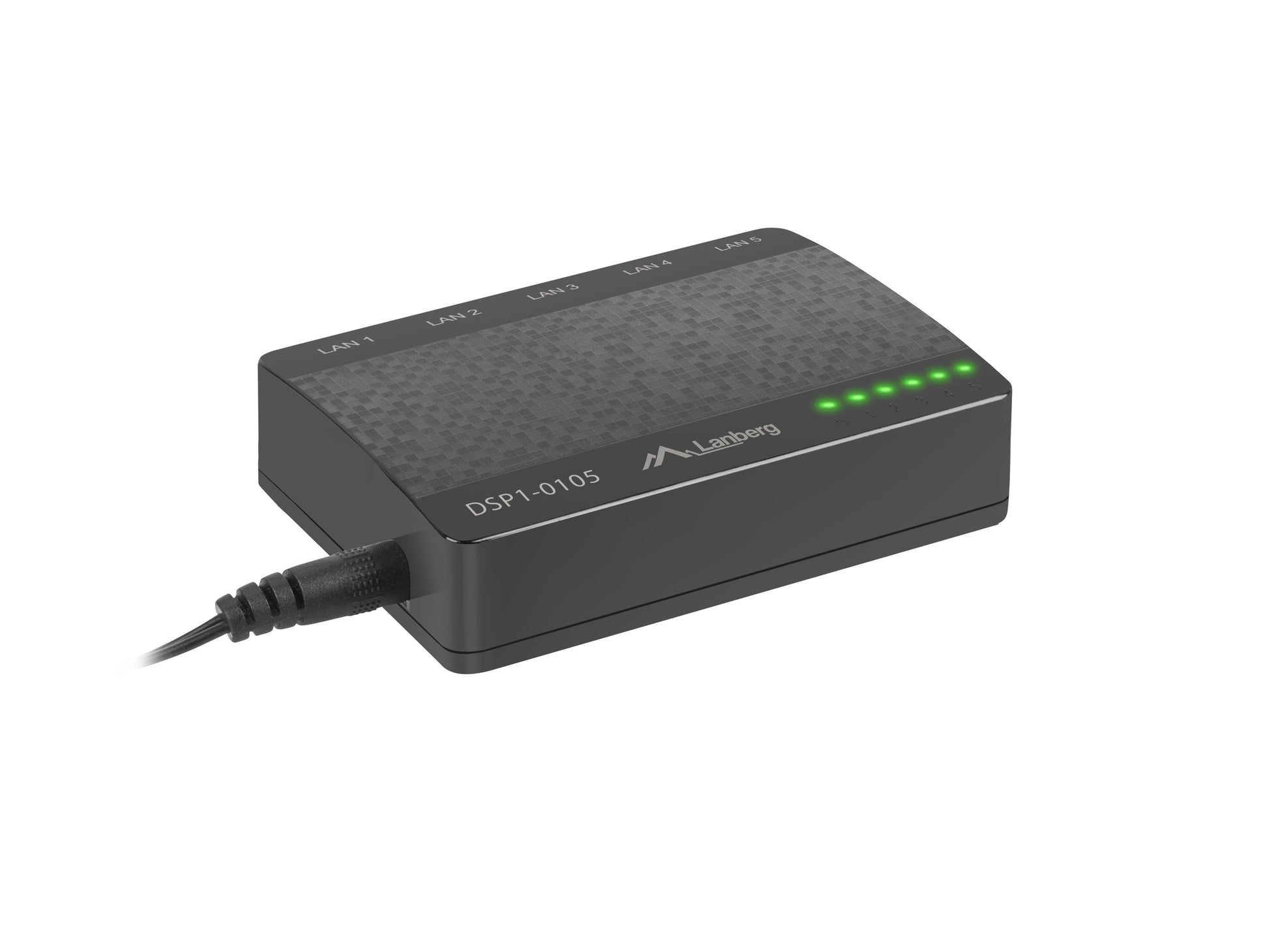

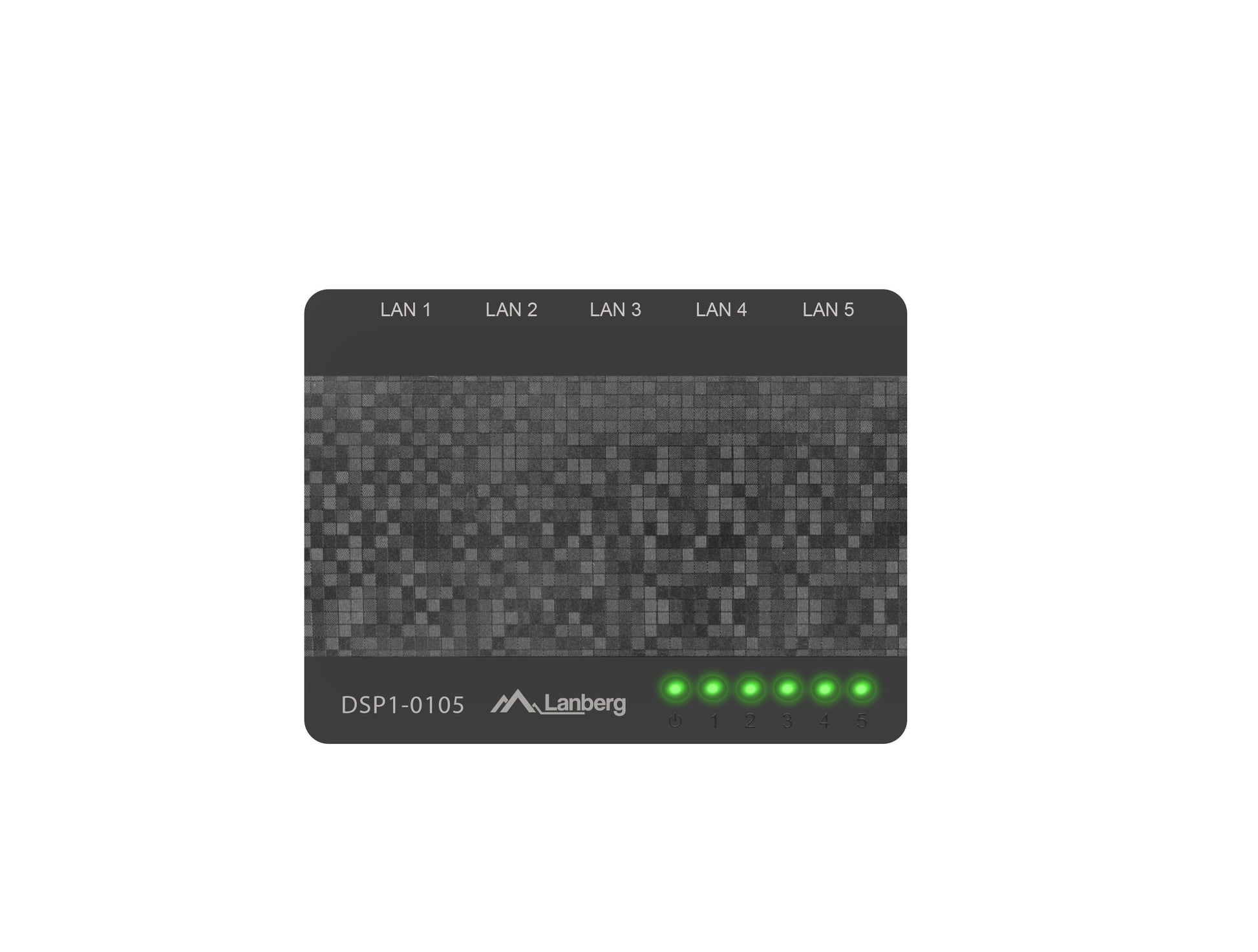

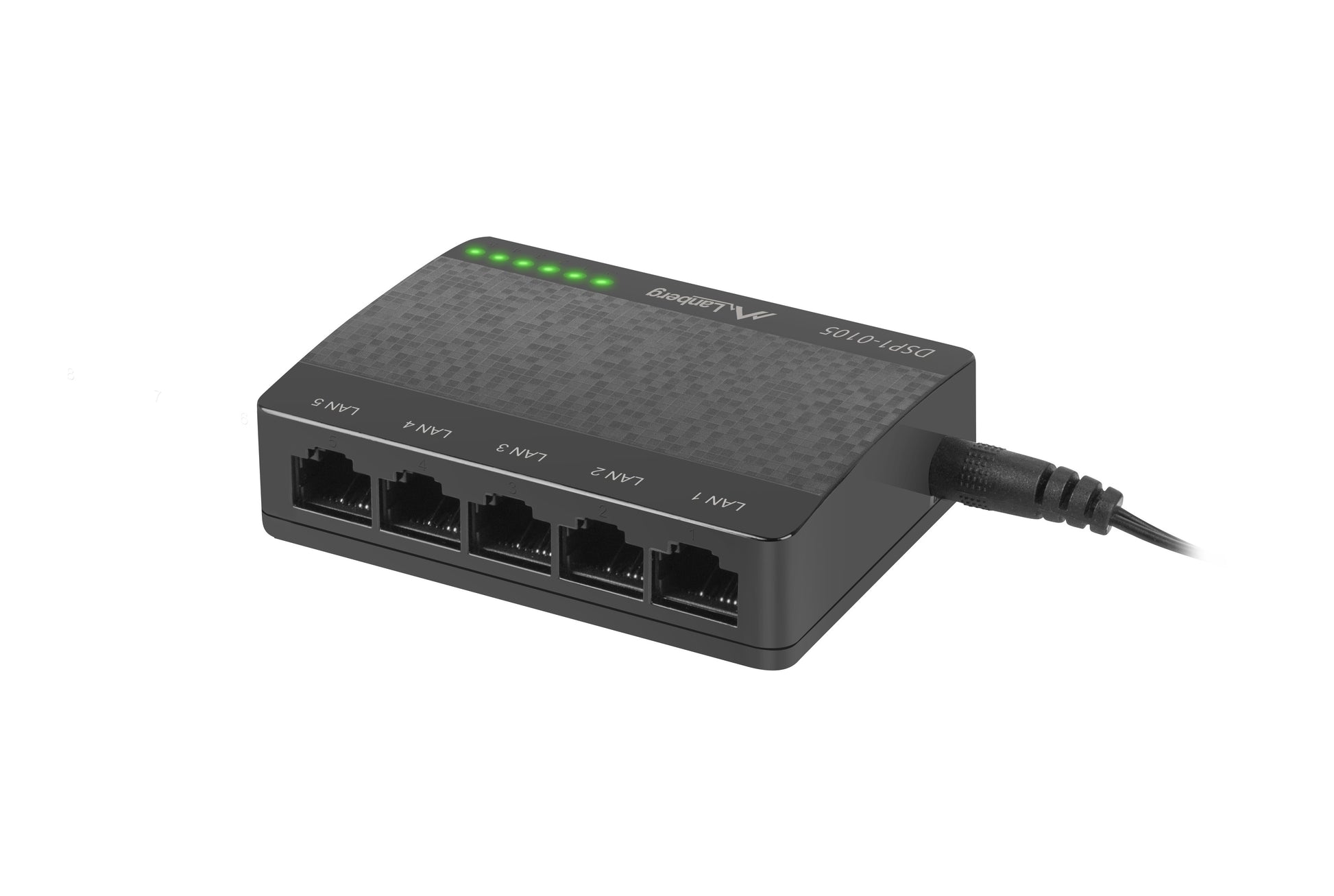

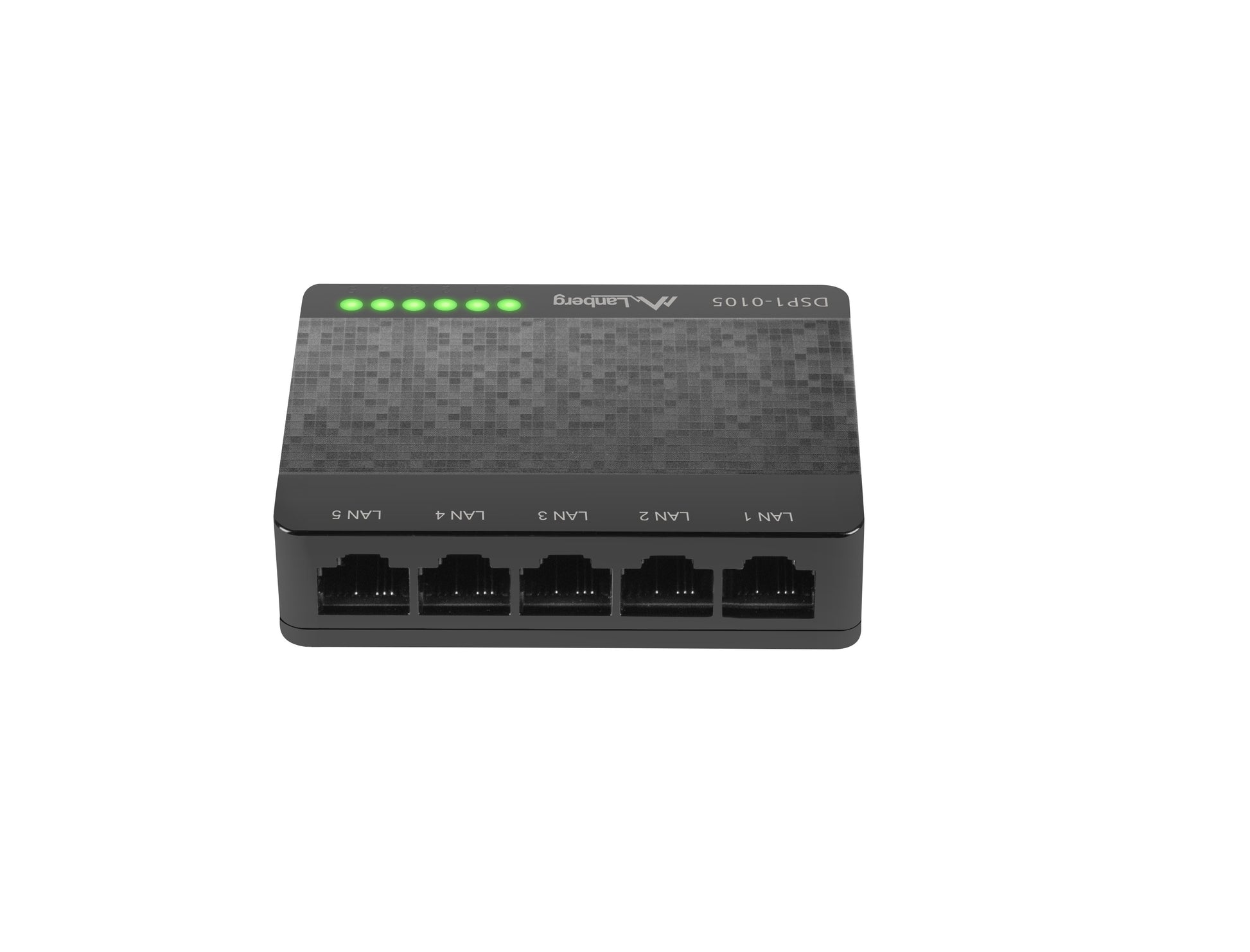

Lanberg DSP1-0105 Ethernet Switch 5port 10/100

Lanberg DSP1-0105 is a compact, unmanaged desktop switch equipped with 5 x Fast Ethernet RJ-45 ports. The device itself is small and handy with Plug & Play operation principles. Product provides switching functions for 5 x 10/100 Mbps RJ-45 ports with automatic connection negotiation and MDI-MDIX support.
Lanberg desktop switch guarantees a combination of high-quality, automation and a range of features ensuring stable device operation without any excessive user intervention.

• 5 x RJ-45 10/100 Mbps ports with automatic connection negotiation
• Plug-and-play support – product does not require any additional configuration
• MDI / MDIX support, MAC-learning, MAC-aging
• Flow control function: Back Pressure @ Half-Duplex and IEEE 802.3x @ Full-Duplex
• Topology: Star
• Protocol: CSMA / CD
• MAC address table support: 1K
• Switching bandwidth: 1.0 Gbps
• Passive cooling for silent switch operation
• Mounting holes for wall installation

• Number of Ethernet ports: 5
• Maxiumum network link speed: 100 Mbps
• Network Link Type: Ethernet
• Management: Unmanaged
• Switch type: Unmanaged
• Type of casing:    Desktop
• Power: 2.15 W
• Bandwith: 1 Gbps
• MAC address table: 1K
• Wired standards: IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control)
• Cooling: Passive
• Power supply: AC
• AC/DC: DC
• Mains: (230V)External
• Work signal: LED
• Material: Plastic
• Height:    22 mm
• Length:    82 mm
• Width:    52 mm
• Weight:    0.1 kg
• Chipset: Realtek - RTL8305NB
• Ports specification: 5x 100BASE-TX
