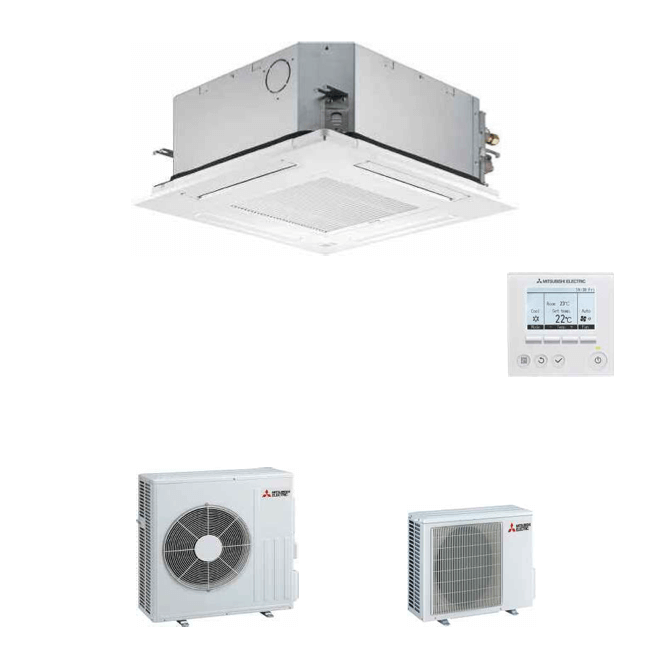

Mitsubishi Cassette Air Conditioner Inverter A++ / A+ R32 SLZ-Series
Mitsubishi Cassette Air Conditioner Inverter A++ / A+ R32 SLZ-Series
Regular price
€2.125,00 EUR
Regular price
Sale price
€2.125,00 EUR
Unit price
per
Tax included.
0 in Stock. Available online!
Couldn't load pickup availability
Description
Installation NOT included
| SLZ-M-FA – INDOOR UNITS | SLZ-M15FA | SLZ-M25FA | SLZ-M35FA | SLZ-M50FA | SLZ-M60FA | |
| CAPACITY (kW) | Heating (nominal) | 1.7 (0.9-3.1) | 3.2 (1.3-4.2) | 4.0 (1.0-5.0) | 5.0 (1.3-5.5) | 6.4 (1.6-7.3) |
| Cooling (nominal) | 1.5 (0.9-2.4) | 2.5 (1.4-3.2) | 3.5 (0.7-3.9) | 4.6 (1.0-5.2) | 5.7 (1.5-6.3) | |
| Heating (UK) | – | 2.72 (1.11-3.57) | 3.40 (0.85-4.25) | 4.25 (1.11-4.68) | 5.44 (1.36-6.21) | |
| Cooling (UK) | – | 2.30 (1.29-2.94) | 3.22 (0.64-3.59) | 4.42 (0.92-4.79) | 5.25 (1.38-5.80) | |
| SHF (nominal) | – | 0.78 | 0.72 | 0.68 | 0.68 | |
| COP / EER (nominal) | – | 3.61 / 3.80 | 3.71 / 3.20 | 3.20 / 3.40 | 3.00 / 3.40 | |
| SCOP / SEER (BS EN14825) | – | 4.30 / 6.30 | 4.30 / 6.70 | 4.20 / 6.30 | 4.10 / 6.20 | |
| ErP ENERGY EFFICIENCY CLASS | Heating/Cooling | – | A+ / A++ | A+ / A++ | A+ / A++ | A+ / A++ |
| AIRFLOW (l/s) | Lo-Mi-Hi | 100-108-117 | 108-125-142 | 108-133-158 | 117-150-192 | 125-192-217 |
| PIPE SIZE mm (in) | Gas | 9.52 (3/8”) | 9.52 (3/8”) | 9.52 (3/8”) | 12.7 (1/2”) | 15.88 (5/8”) |
| Liquid | 6.35 (1/4”) | 6.35 (1/4”) | 6.35 (1/4”) | 6.35 (1/4”) | 6.35 (1/4”) | |
| SOUND PRESSURE LEVEL (dBA) | Lo-Mi-Hi | 24-26-28 | 24-26-28 | 25-28-31 | 25-30-34 | 27-34-39 |
| SOUND POWER LEVEL (dBA) | 45 | 45 | 48 | 51 | 56 | |
| DIMENSIONS (mm) Width x Depth x Height | 570(650)x570(650)x245(10) | 570(650)x570(650)x245(10) | 570(650)x570(650)x245(10) | 570(650)x570(650)x245(10) | 570(650)x570(650)x245(10) | |
| WEIGHT (kg) | Unit / Grille | 15 / 3 | 15 / 3 | 15 / 3 | 15 / 3 | 15 / 3 |
| ELECTRICAL SUPPLY | Fed by Outdoor Unit | Fed by Outdoor Unit | Fed by Outdoor Unit | Fed by Outdoor Unit | Fed by Outdoor Unit | |
| FUSE RATING (BS88) – HRC (A) | 6 | 6 | 6 | 6 | 6 | |
| INTERCONNECTING CABLE No. Cores | 4 | 4 | 4 | 4 | 4 | |
| GRILLE REFERENCE | SLP-2FA | SLP-2FA | SLP-2FA | SLP-2FA | SLP-2FA | |
| WIRED REMOTE CONTROLLER REFERENCE | PAR-40MAA | PAR-40MAA | PAR-40MAA | PAR-40MAA | PAR-40MAA | |
