INTER-TECH, C-702 COMPUTER CASE MIDI DIORAMA W/OUT FANS
INTER-TECH, C-702 COMPUTER CASE MIDI DIORAMA W/OUT FANS
Couldn't load pickup availability

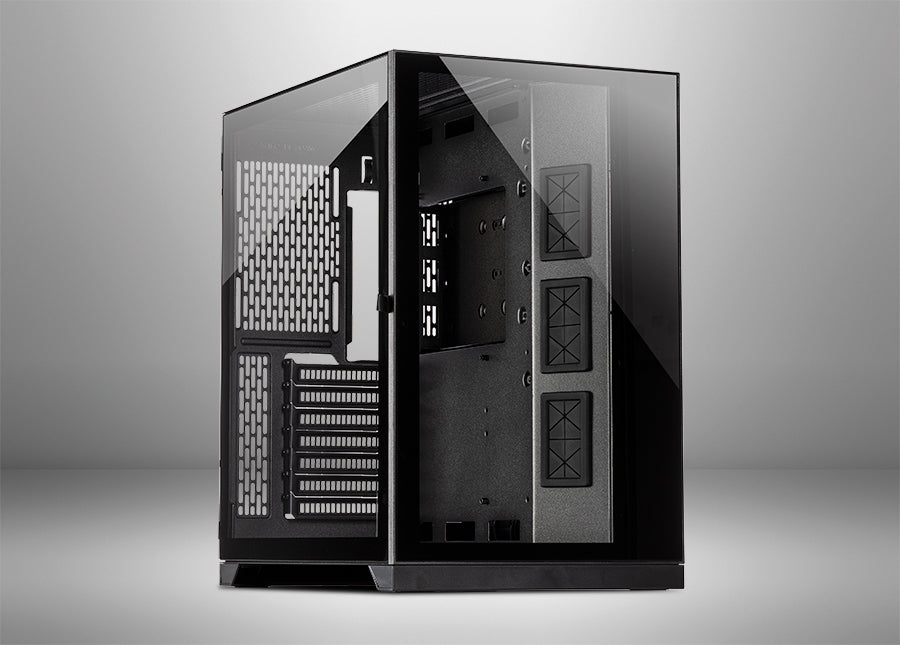

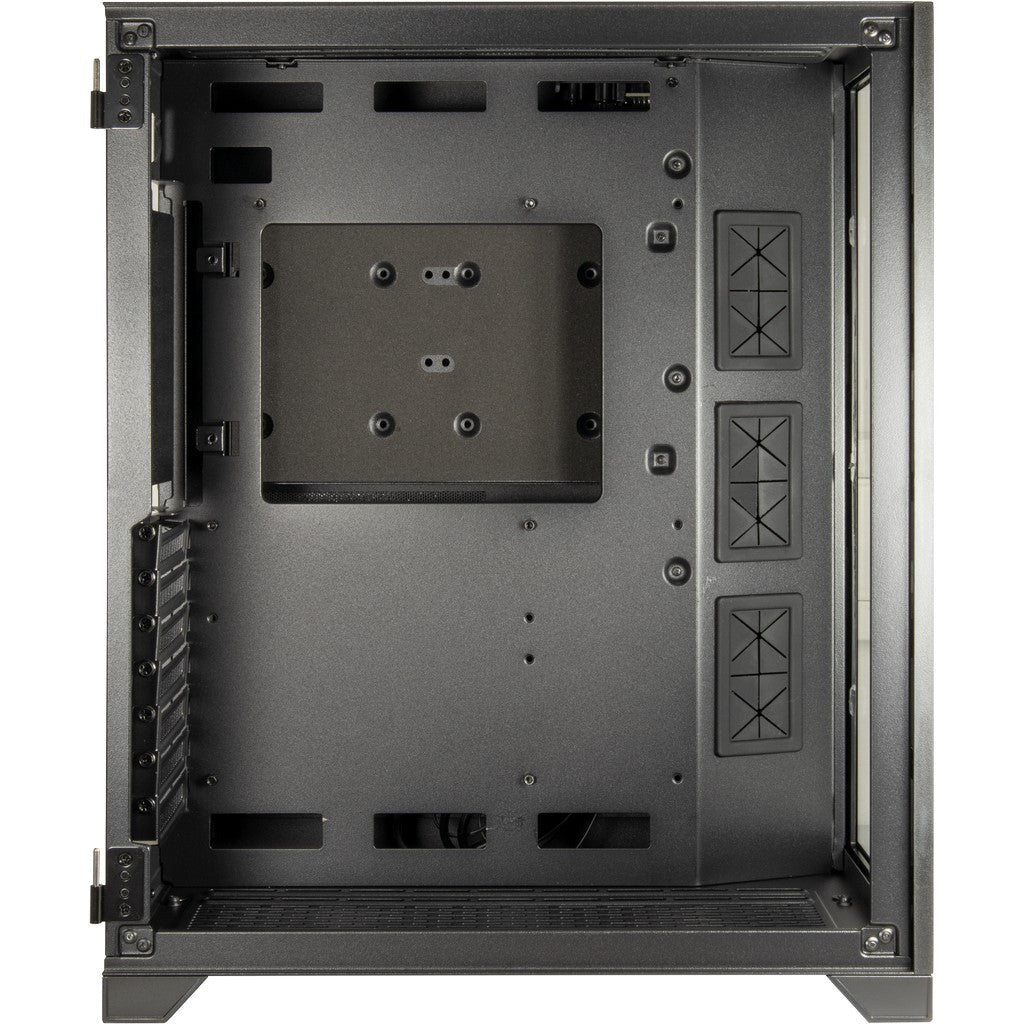

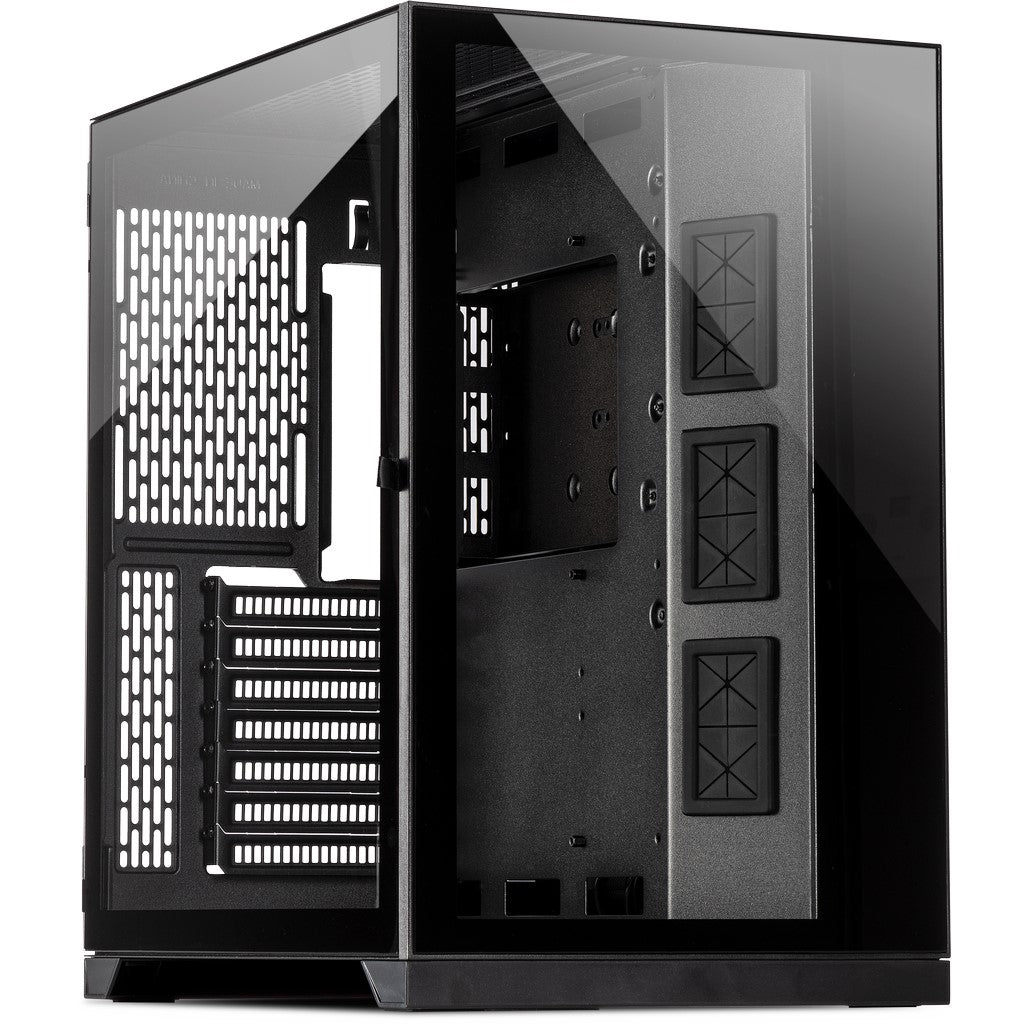

The C-702 Diorama is the perfect show case to put your hardware in the limelight. Thanks to the large tempered glass front panel and the large tempered glass side panel, which can be opened without tools using a magnetic lock, the case offers a great view of the inside - both from the front and from the side. There is a choice of five installation spaces for 120mm fans or four 140mm fans, thus leaving enough freedom of design as to how and whether the interior is to be illuminated or optionally equipped with AiO water cooling in the sizes 120mm, 240mm or 280mm.

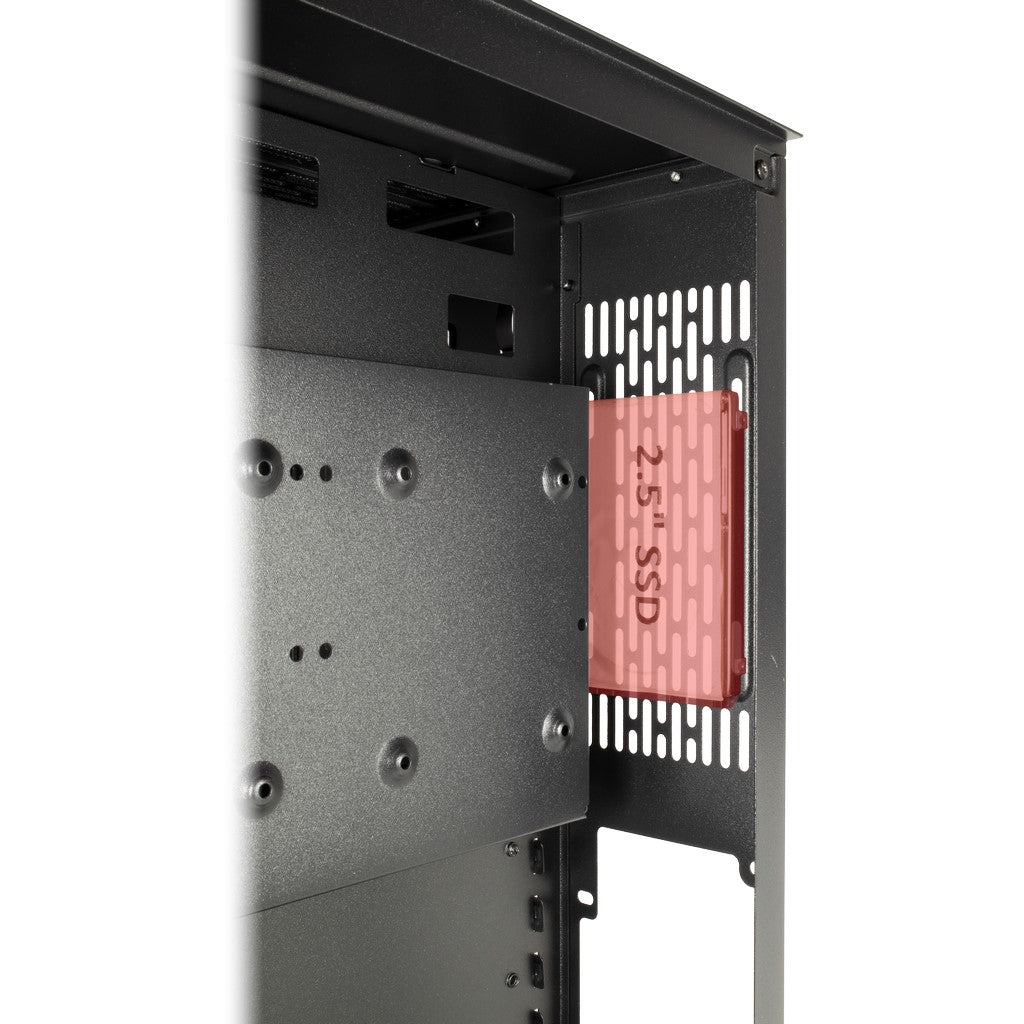

There was also no cut in the number of slots for 2.5" SSDs and 3.5" HDDs. The C-702 Diorama offers space for 2x 2.5" SSD and 2x 3.5" HDD in a separate, padded holder. Another 2.5" SSD can be attached to the rear of the case instead of a 120mm fan. The power supply attachment is located behind the motherboard carrier and leaves enough space to hide excessively long and excess cables. Through the three rubberized cable grommets, further cables that take up space in the interior of the case disappear easily.

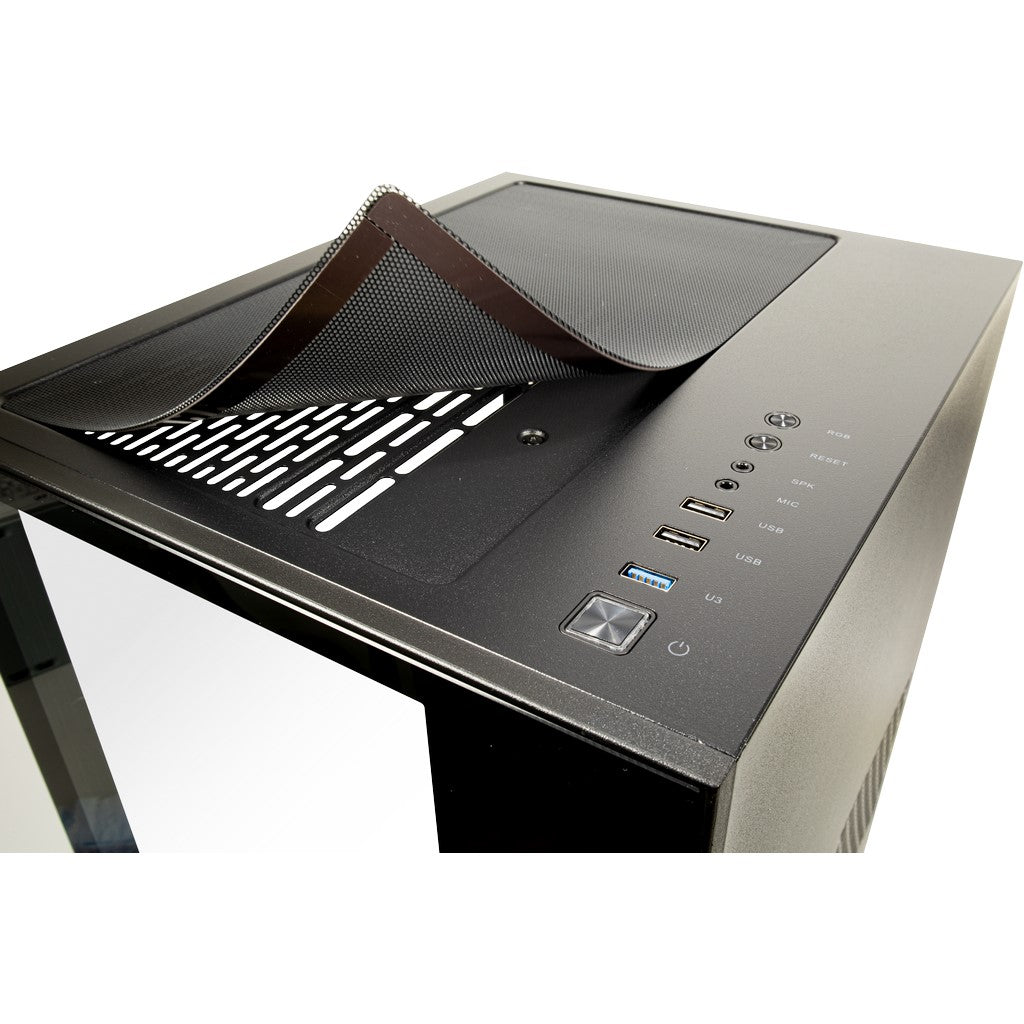

Integrated, easy-to-remove dust filters in the top, bottom and side panel protect the spacious interior from the inconvenience of dust. The external connections, such as USB 3.0, are located on the front panel and are therefore easy to reach.
- Large front panel made of tempered glass
- Large window side part made of tempered glass
- Up to 5x 120mm or 4x 140mm fans can be installed
- Up to 2x 3.5" and 3x 2.5" possible
SIZE | |
---|---|
Form factor | ATX, μATX, ITX |
Dimensions (h/w/d) | 430 x 285 x 360mm |
INSTALLATION DIMENSIONS | |
Height CPU cooler (max.) | 160mm |
Length graphics card (max.) | 325mm |
DRIVE BAYS | |
5.25" external | |
3.5" external | |
3.5" internal | 2x |
2.5" internal | 3x |
FRONT CONNECTORS | |
USB 3.0 | 1x |
USB 2.0 | 2x |
Card Reader | |
Microphone | 1x |
Headphones | 1x |
POWER SUPPLY | |
ATX-PSU | |
FAN MOUNTING OPTION | |
Rear | 1x 120mm (optional) |
Top | 2x 120mm or 2x 140mm (optional) |
Bottom |
2x 120mm or 2x 140mm (optional) |
