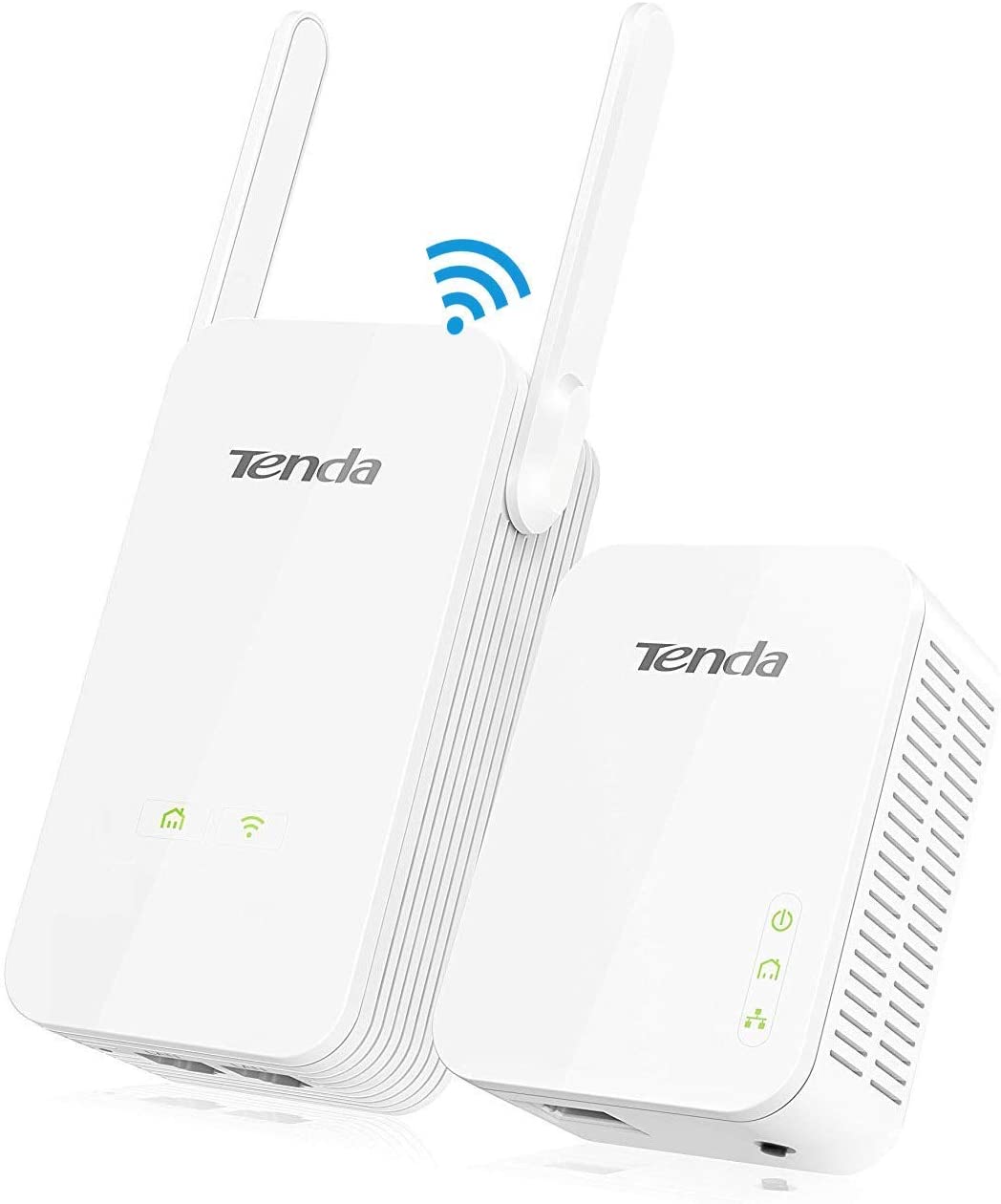

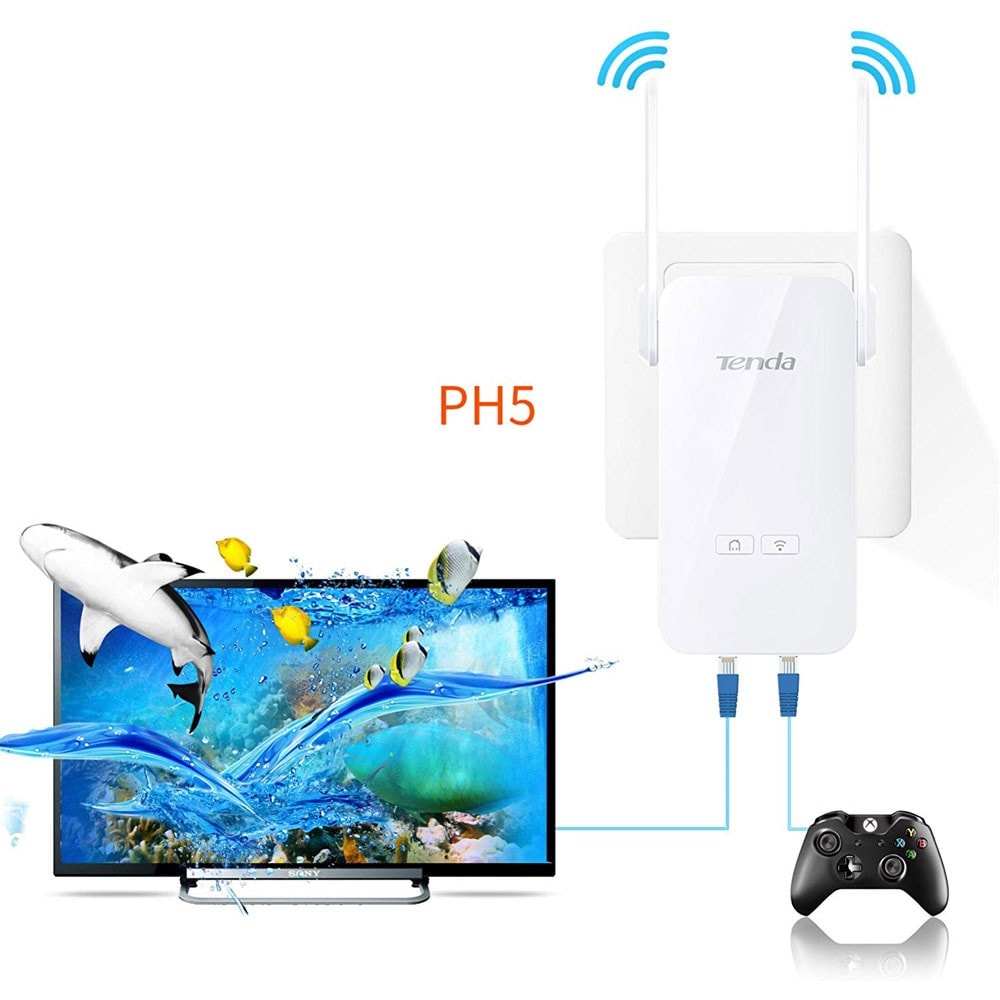

Tenda PH5 AV1000 Wi-Fi Gigabit Powerline Kit UK

PH5 Double 1000Mbps provides faster network for your entertainment,With the new generation Broadcom Powerline chipset and Homeplug AV2 technology, the transmission speed of PH5 can be up to 1000Mbps. And it’s Gigabit Ports is 10 times better than 100M ports.which is the real Gigabit network for your entertainment.

Speed
Poweline :1000Mbps
Wi-Fi :300Mbps

Standard&Protocol
HomePlugAV2
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab
IEEE802.11 b/g/n

Interface
Powerline Adapter:1*10/100/1000M
Wi-Fi Powerline Extender:2*10/100/1000M

Modulation Technology: OFDM,CSMA/CA

Button:
Powerline Adapter:1*Pair/Reset
Wi-Fi Powerline Extender:1*Pair,1*Wi-Fi Clone/switch,1*Reset

LED indicator
Powerline Adapter:1*Power,1*Powerline,1*Ethernet
Wi-Fi Powerline Extender:1*Powerline,1*Wi-Fi

Power Consumption
Powerline Adapter:Maximum: 3.2W,Minimum: 0.36W
Wi-Fi Powerline Extender:Maximum: 8.9W,Standby:0.5W

Power Input: AC:100～240V 50/60Hz 0.1A

Frequency
Powerline:2-86MHz
Wireless:2.4~2.4835GHz

Dimension
Powerline Adapter:82mm*60mm*32mm
Wi-Fi Powerline Extender:120mm*63mm*42mm

Certification: CE,FCC,RoHs
Plug Type: UK

Package Content

• AV1000 Gigabit Powerline Adapter
• AV1000 2-Port Gigabit Wi-Fi Powerline Extender
• Quick Installation Guide
• Cat5e Ethernet Cable
