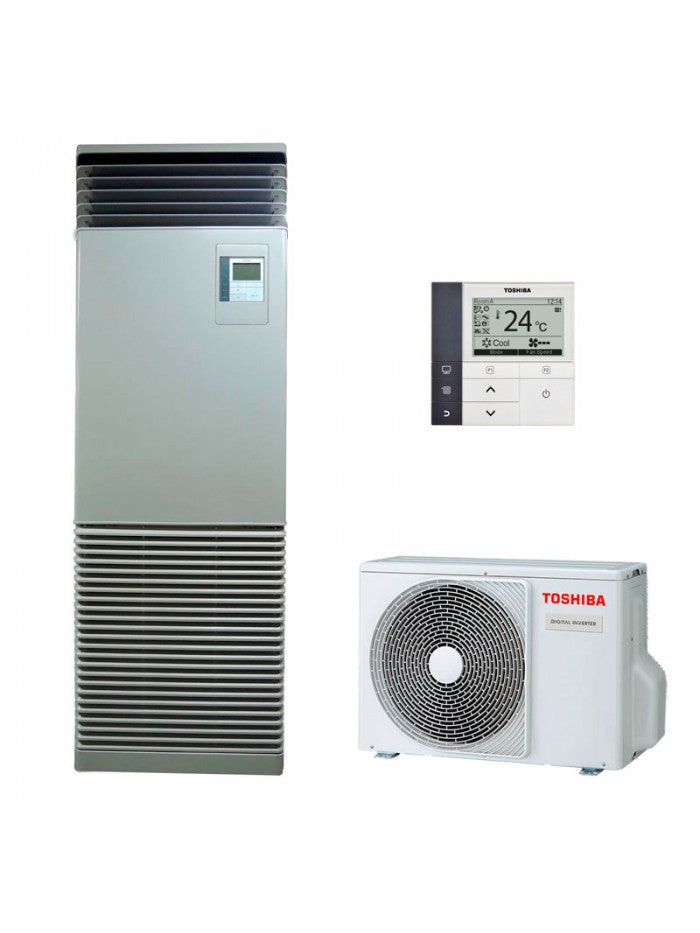

Toshiba Floor Standing RAV-RM801FT-EN+RAV-GM801ATP-E (1ph) Air Conditioner 28000 BTU R32 Inverter B/A

The Toshiba Ímola DI 80 vertical air conditioner with R-32 is a super-digital Inverter unit with 6.7 kW of cooling power and great energy efficiency in air conditioning.

This air conditioning and floor heating system is ideal for air conditioning rooms up to 60 m2: large rooms, shops, showrooms or spaces with low ceilings, such as bars, restaurants or lofts.

This equipment from Toshiba's commercial range has been designed to provide particularly large air flows, thanks to its superior air release capacity. The air distribution angle is up to 150°. This is ensured by the vertical and horizontal air distribution angles (large and automatic), which allow the airflow to reach all areas, even when installed in large spaces.

One of the advantages of the Toshiba Ímola DI 80 vertical air conditioner is that it can be installed anywhere, such as in the corner of the room. In this case, the automatic sweep angle can be set to distribute the air only where it is needed.

Furthermore, it takes up little space (0.128 m2 up to 8 kW), includes sensor for refrigerant leak detection and R-32 gas charge, more efficient and environmentally friendly.

• Part number: RAV-GM801ATP-E|RAV-RM801FT-EN
• Air conditioning and floor heating
• System for air conditioning of large rooms, such as shops or showrooms, restaurants, shops...
• Air conditioning for 60 m2
• Energy Class B/A (Label).
• 6.7 kW of Refrigeration.
• 7.7 kW Heating

Data sheet

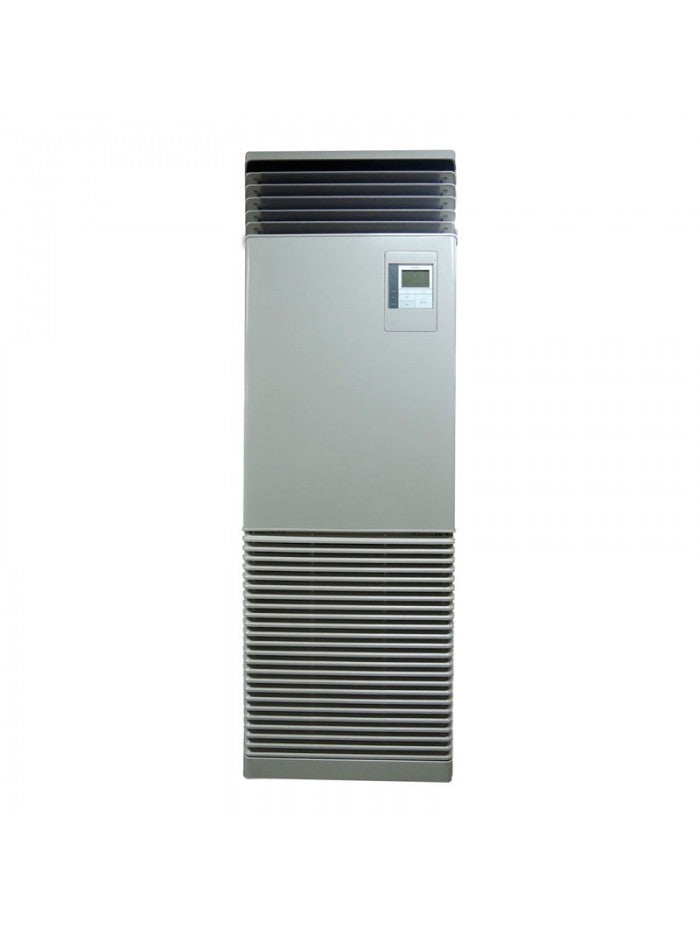

Indoor Unit: RAV-RM801FT-ES

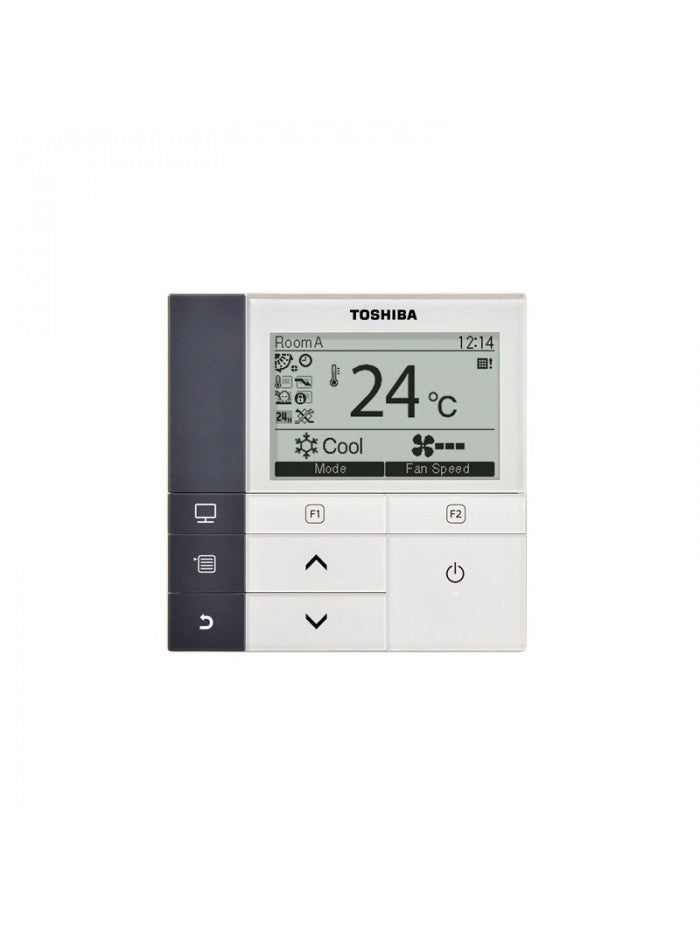

Remote Control: RBC-AMS55E-ES

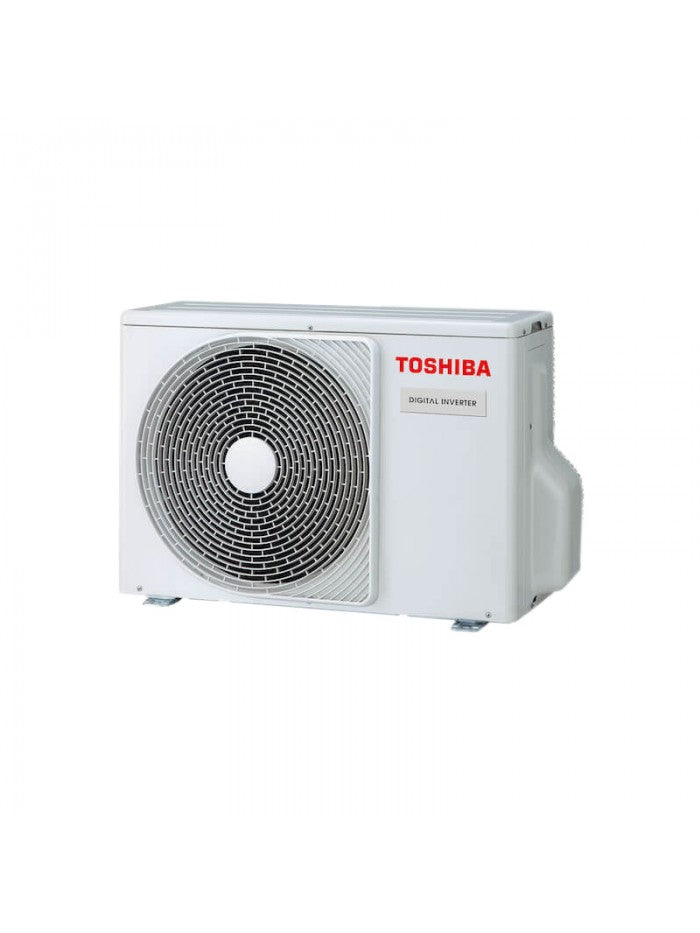

Outdoor Unit: RAV-GM801ATP-E

Series: IMOLA DI

Featured: Digital Inverter

Cooling Capacity: 5.762 Kcal/h (6.70 kW)

Heating Capacity: 6.622 Kcal/h (7.70 kW)

Refrigerant: R-32

Recommended Surface Area: 50 - 60 m²

Heat Pump: Yes

Nominal Consumption (Cooling/Heating): 3.2 / 3.2

Minimum Sound Pressure Level (Indoor Unit): 41 dBA

Energy Label (Cooling): B

Energy Label (Heating): A

SEER / SCOP: 4.89 / 3.81

Indoor Unit Color: White

Wifi: Optional

Dimensions - Indoor Unit (mm - W x D x H): 600 × 210 x 1750

Dimensions - Outdoor Unit (mm - W x D x H): 780 x 290 x 550

Net Weight: 88

Total Packages: 2

Liquid Pipe Diameter: 3/8

Gas Pipe Diameter: 5/8

Supply: Single-Phase

Energy Classification: A
